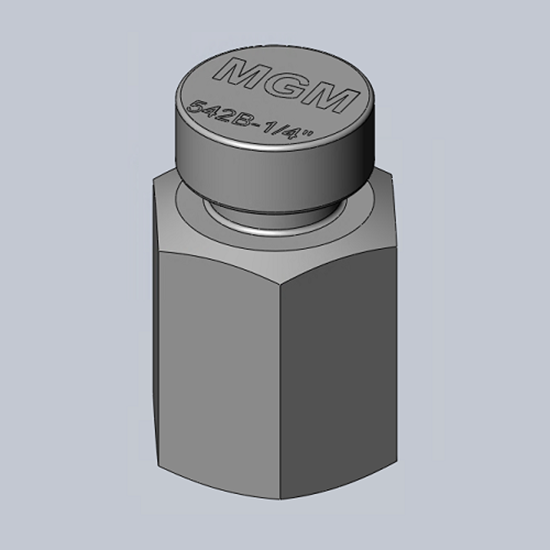

1/4" Pipe Cap with Chain Photo
1/4" Pipe Cap with Chain Photo
1/4" Pipe Cap with Chain Dimension Photo

1/4" Pipe Cap

Threads: ¼” female NPT

Hex: 3/4”

Length: 11/16”

Part Number: TC-542B

Material Options:

- Carbon Steel (C1018)

- 304 Stainless Steel

- 316 Stainless Steel

- Additional material options available on request

1/4" and 3/8" pipe caps come standard with a 5” length of #18 single jack chain with a clip ring between the round head and hex to secure and prevent loss of pipe cap.

Proudly machined in the USA in Bartlesville, Oklahoma.

Get Quote

The table below represents presure ratings for this cap across our stock materials. Pressure ratings are calculated as per ASME B31.3 and are valid up to 600 deg F.

Material Pressure Rating (psig)
Carbon Steel 5,100
304 Stainless 4,600
316 Stainless 4,400
